CAÑONES PULVERIZADORES

CAÑONES PULVERIZADORES

Detalle y carcateristicas de cada cañon pulverizador, disponibles :

Model RDSS-30

• Theoretical throw distance (without wind) 25-30m • Rings of nozzles 1 • Number of nozzles 20 • Type nozzles stainless steel • Nominal fan power 3kw • Pump (optional) 1.5kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10°-45° • Hydraulic connection 0.55kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge • Water filter with extractable cartridge • Water consumption 2m³/h • Weight (Kg) 350kg • Pressure 1.7~1.8Mpa • The length of the ram 1300mm • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 1.25*0.8*1.7.

Model RDSS-40

• Theoretical throw distance (without wind) 35-40m • Rings of nozzles 1 • Number of nozzles 40 • Type nozzles stainless steel • Nominal fan power 7.5kw • Pump (optional) 1.5kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10°-45° •Hydraulic connection 0.55kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge Water filter with extractable cartridge • Water consumption 3.5m³/h • Weight (Kg) 580kg • Pressure 2.0~2.3Mpa • The length of the ram 1800mm • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 1.75*1.0*1.85.

Model RDSS-60

• Theoretical throw distance (without wind) 55-60 • Rings of nozzles 2 • Number of nozzles 60 • Type nozzles stainless steel • Nominal fan power 18.5kw • Pump (optional) 4kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10°-45° • Hydraulic connection 1.1kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge • Water filter with extractable cartridge • Water consumption 4.5m³/h • Weight (Kg) 900kg • Pressure 1.9-2.1Mpa • The length of the ram 2000MM • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 2.2*1.25*2.15.

Model RDSS-80

• Theoretical throw distance (without wind) 75-80 • Rings of nozzles 2 • Number of nozzles 80 • Type nozzles stainless steel • Nominal fan power 37kw • Pump (optional) 7.5kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10°-45° •Hydraulic connection 1.1kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge • Water filter with extractable cartridge • Water consumption 8.4m³/h • Weight (Kg) 1500kg • Pressure 1.5~1.7Mpa • The length of the ram 2500mm • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 2.55*1.55*2.25 .

Model RDSS-100

• Theoretical throw distance (without wind) 95-100 • Rings of nozzles 3 • Number of nozzles 100 • Type nozzles stainless steel • Nominal fan power 55kw • Pump (optional) 11kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10°-45° •Hydraulic connection 2.2kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge • Water filter with extractable cartridge • Water consumption 9.6m³/h • Weight (Kg) 1800kg • Pressure 1.7~1.8Mpa • The length of the ram 2600mm • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 2.25*1.55*2.7.

Model RDSS-120

• Theoretical throw distance (without wind) 110-120 • Rings of nozzles 3 • Number of nozzles 120 • Type nozzles stainless steel • Nominal fan power 75kw • Pump (optional) 15kw • Manual Angle of rotation 0-320° • Elevation anglePitch angle -10-45° •Hydraulic connection 2.2kw • Electrical connection 380V 50hz 3P+T • Protection rating IP 55 • Water filter with extractable cartridge • Water filter with extractable cartridge • Water consumption 12m3/h • Weight (Kg) 2000kg • Pressure 2.0~2.2Mpa • The length of the ram 2800mm • Control mode Manual/remote control • Optional anti-explosion/freeze-proofing/noise reduction •package size 2.3*1.6*2.8 .

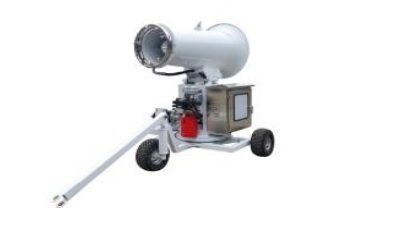

RDSS-30 3 Wheels Trolley

GENERAL CAPACITE : max. cover area （horizontal no wind) : 2,480m² Electrical connection : 380V 50Hz Max. spray range（horizontal no wind) : 25~30m Control Connect : PLC Control mode : Remote control WATER MIST SYSTEM : Rings of nozzles : 2pcs Number of nozzles 20pcs Type nozzles 304 SUS. Pump 1.5kw SUS. multistage centrifugal pump. Water filter with extractable cartridge Yes Pressure 0~35Bar / 0~3.5 Mpa Water consumption: 30~40L/minute BLOW SYSTEM Elevation angle Pitch angle ~10° to 45°Hydraulic push system with single push rod ~10° to 45°Hydraulic push system with single / double push rod Hydraulic connection : 0.75kw 0.75kw Electrical connection : 380V 50hz Nominal fan power : 3kw Fan blade material : Alu. alloy fan blades Mobile : trailer : 3 Wheels Trolley/pallet PACKING : Weight (Kg) : 260kg 320kg package size (mm)/(L*W*H) : 1450mm*1400mm*1650mm.

RDSS-40 3 Wheels Trolley

GENERAL CAPACITE : max. cover area （horizontal no wind) : 4,400m² Electrical connection : 380V 50Hz Max. spray range（horizontal no wind) : 40m Control Connect : PLC Control mode : Remote control WATER MIST SYSTEM : Rings of nozzles : 2pcs Number of nozzles 30pcs Type nozzles 304 SUS. Pump 1.5kw SUS. multistage centrifugal pump. Water filter with extractable cartridge Yes Pressure 0~35Bar / 0~3.5 Mpa Water consumption: 50~60L/minute BLOW SYSTEM Elevation angle Pitch angle ~10° to 45°Hydraulic push system with single push rod ~10° to 45°Hydraulic push system with single / double push rod Hydraulic connection : 0.75kw Electrical connection : 380V 50hz Nominal fan power : 3kw Fan blade material : Alu. alloy fan blades Mobile : trailer : 3 Wheels Trolley/pallet PACKING : Weight (Kg) : 320kg package size (mm)/(L*W*H) : 1500mm*1420mm*1720mm
